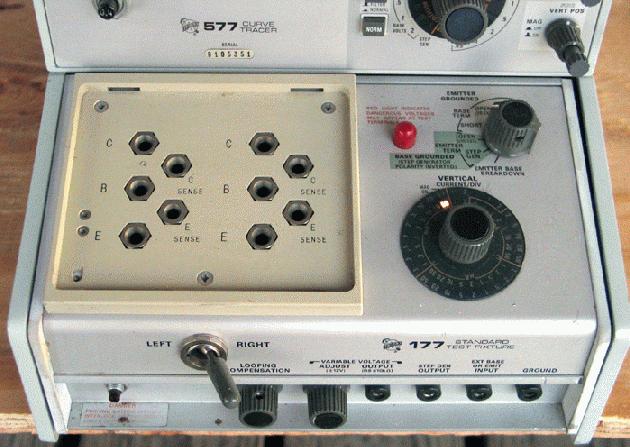

The Tektronix 577 is a curve tracer, introduced in November 1972, that uses plug-in test fixtures. The 177 is the standard fixture, which is intended for testing.
Tektronix 577 Curve Tracer Service Manual
Description The Tektronix 577 Transistor Curve Tracer system, when used with the 177 Standard Test Fixture (sold separately), offers a convenient method of presenting dynamic characteristic transistor curves and a wide range of other semiconductor devices. This series places special emphasis on being able to make low current measurements.
Collector supply: (five modes, five ranges) 6.5 V/10 A, 25 V/2.5 A, 100 V/0.6 A, 400 V/0.15 A, 1600 V/0.04 A. Current increments: 5 nA/step to 0.2 A/step ±2%. Voltage increments: 5 mV/step to 2 V/step ±2%. Gold Level benefits. 6-month Warranty on purchases. 1st year Return-to-Lab Level I Calibration included on purchases (shipping not included). Priority Scheduling for calibrations and repairs Platinum Level benefits.
